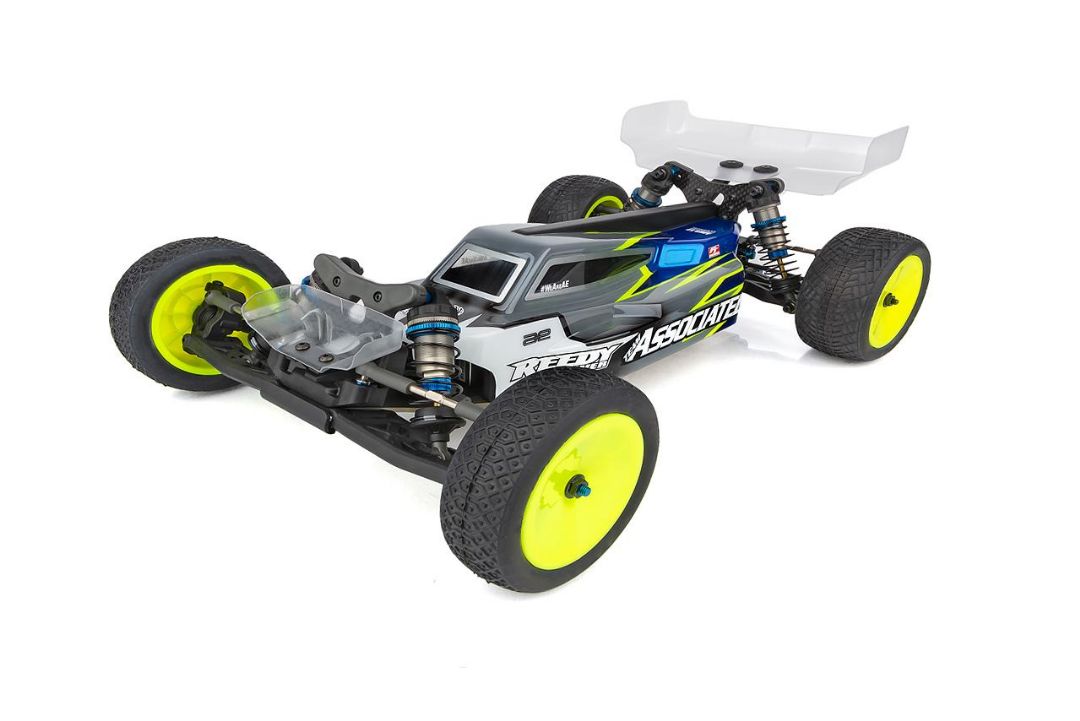

Team Associated RC10 1/10 B6.4D Team Kit

New Features

• New 13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling
• New dirt length aluminum chassis with 22.5deg. kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface
• 20deg, 22.5deg, and 25deg molded bulkheads included for a complete range of caster and kickup options
• New adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
• New -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw
• New steel RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a further forward weight bias
• New front ballstud mount, top plate, and front wing mount to account for the kickup angle change
• New chassis side rails with three fan mount locations to choose from depending on chassis length and transmission used
• New caged thrust bearing for ball differential
• New cab-forward design RC10B6.4 bodyshell offered in standard (kit) and lightweight (optional) thickness

Legacy Features

• 4mm carbon fiber front and rear shock towers with molded protective covers
• Aluminum servo mounting system with direct-to-chassis mounts and molded brace with transponder mounting location
• Octalock spur gear and 19mm Octalock LCF pads
• Wide pivot rear aluminum arm mounts for use with 73mm arms and 69mm CVA bones gives more predictable rear traction and an easy-to-drive rear-end feel. Also compatible with 75mm optional arms using the narrowest insert settings.
• Symmetric rear arms with improved geometry and stiffness that can be flipped to allow a "split" for rear shock mounting position. Arms are available in 73mm and 75mm lengths (73mm included)
• Rear hub assembly with modular vertical ball stud camber link mounts and axle height adjustments for precise roll center adjustments
• Outer rear hinge pins captured with bolt head and locknut for increased durability
• Clear body and clear wing included
• Front wing mount and front wing included
• Rod end battery brace parts and hardware included in kit
• Molded wire clips included for motor and ESC wires
• +1 carbon fiber steering arms
• Black steel LP serrated wheel nuts
• 69mm CVA bones for reduced bone plunge and minimized friction at drive pin
• Aluminum electronics plate included for improved mass balance and lower overall center of mass
• 5mm aluminum clamping wheel hexes
• Ball differential included
• Lay-down and Lay-back transmission assemblies included for tuning mass balance to different track surfaces
• Adjustable differential height to allow drive shaft alignment through all ride height & axle height configurations
• Shocks include X-rings for low friction assembly
• Aluminum rear ballstud mount with three link positions options for maximum adjustability and added strength
• Lightweight aluminum one-piece top shaft and gear
• Factory Team ball bearing set with 24 precision ball bearings, now oiled instead of greased for more efficient drivetrain
