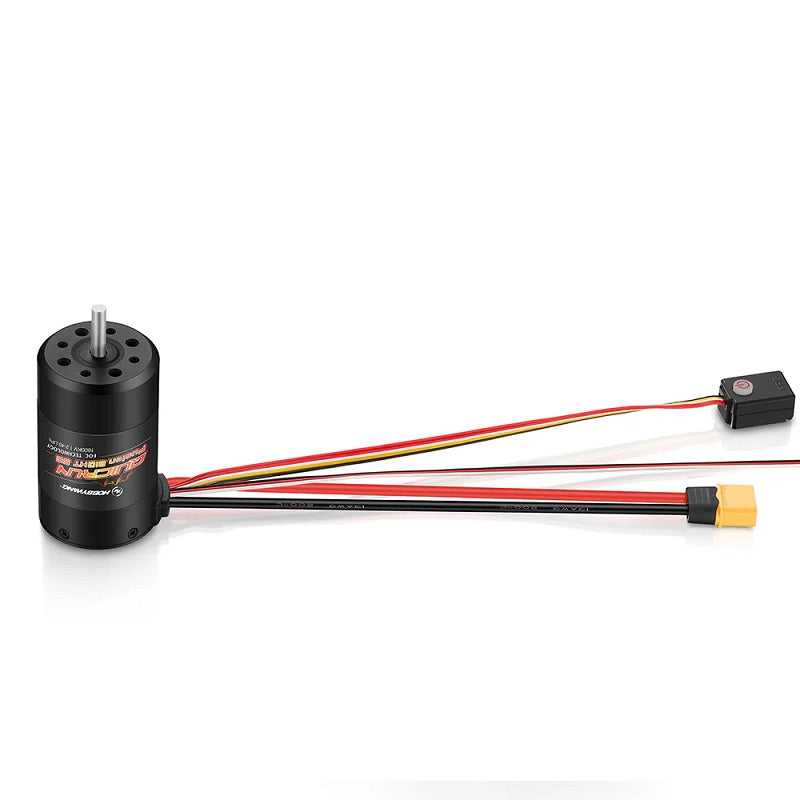

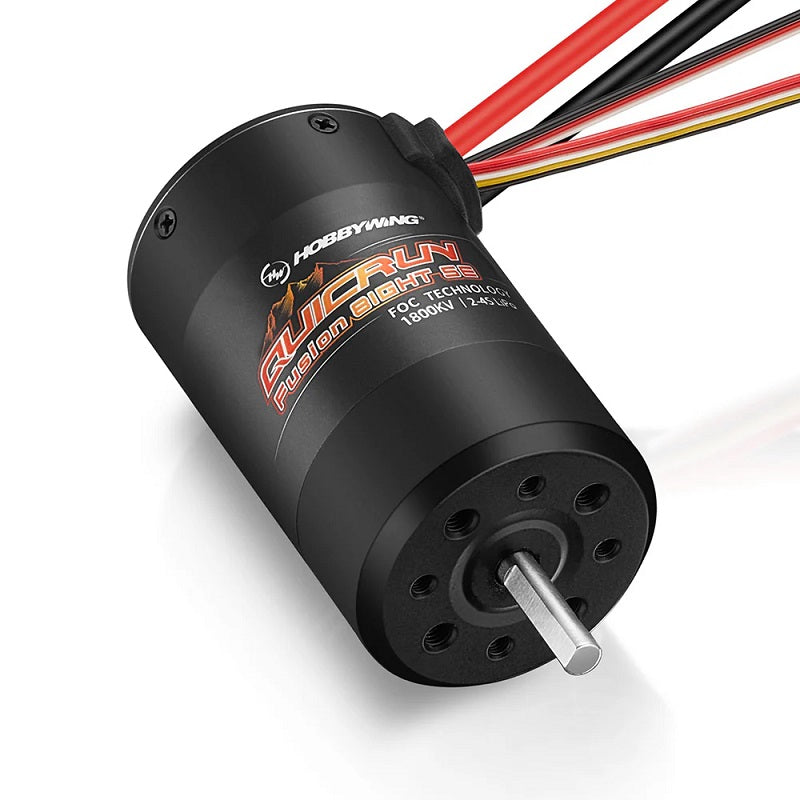

Quicrun Fusion 8ight SE (2in1 FOC system)

Quicrun Fusion 8ight SE (2in1 FOC system)

1/8 Integrated Power System
A high performance FOC integrated System for 1/8th scale models, for Super Linearity, High Torque & Extreme Mute.

• Continuous/peak current: 60A/200A
• Main applications: 1/8 Crawler
• LiPo Cells: 2-4S LiPo, 6-12 Cells NiMH
• BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
• Size/Weight: 41mm (diameter) x 69mm (length)/326.5g (including wires & connectors)
• Programming Port: Independent programming port (switch position)
• Motor KV: 1800KV
• Diameter/Length of motor: 41mm/69mm
• Shaft diameter/exposed shaft length: 5mm/18.5mm
• Motor Poles: 4
