A4040 MT/HS Micro Metal Gear HV Servo
A4040 MT/HS Micro Metal Gear HV Servo
SPMSA4040
Regular price
$94.98 CAD
Regular price
Sale price
$94.98 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Spektrum™ A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.
Application: Airplane
Bearing: Single BB
Bushing Or Bearing: Bearing
Connector Type: Universal
Deadband: <1µs
Gear Type: Metal
Input Voltage: 4.8V-8.4V
Maximum Servo Speed: 0.16 sec/60 deg @ 6.0V; 0.12 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Maximum Servo Torque: 84 oz-in (6.05kg-cm) @ 6.0V; 91 oz-in (6.55kg-cm) @ 7.4V; 96 oz-in (7kg-cm) @ 8.4V
Overload Protection: No
Product Application: Air

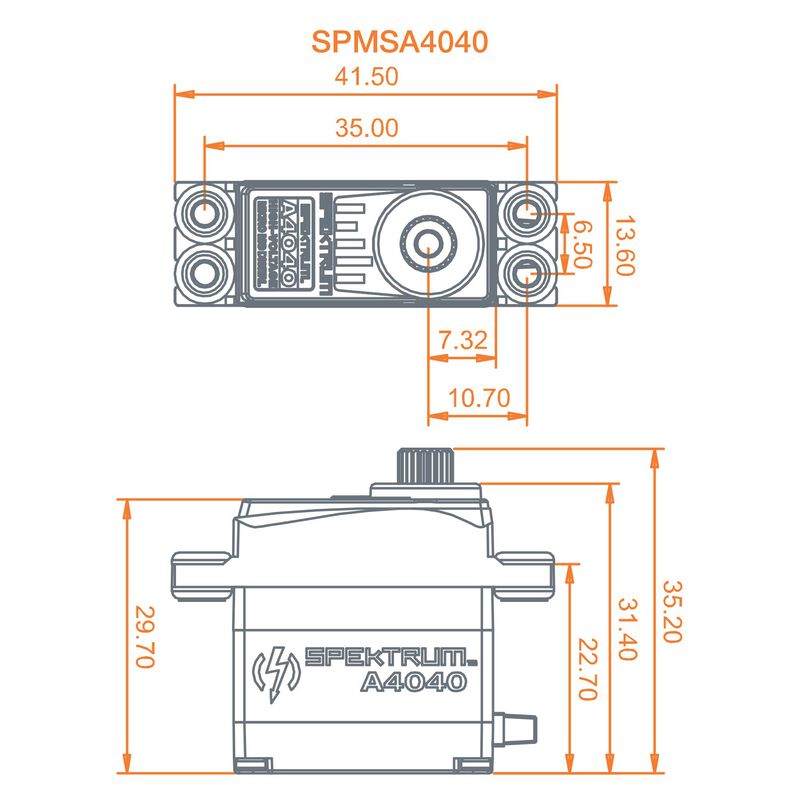

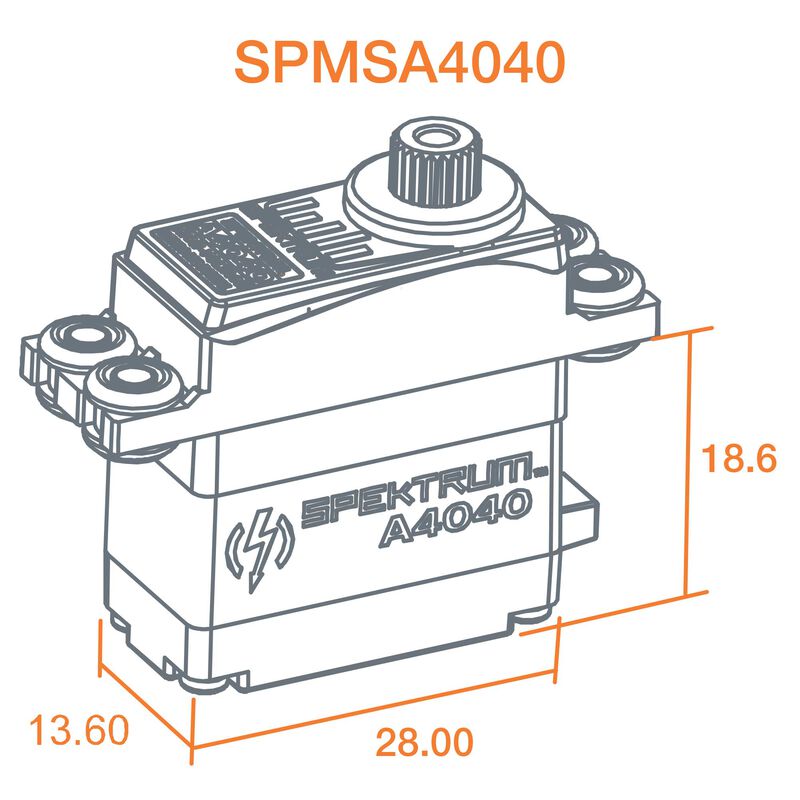

Product Height: 1.23" (31 mm)
Product Length: 1.1" (28 mm)
Product Weight: 0.9oz (26g)
Product Width: 0.54" (14 mm)
Programmable: No
Prop 65: California Residents Prop 65 WARNINGS.
Servo Operating Voltage: 4.8 - 8.4V (HV)
Servo Size Category: Micro
Servo Type: Digital
Spline Count: 23 - Tooth
Water-Resistant: No
Wire Gauge: 22 AWG
