Castle Creations

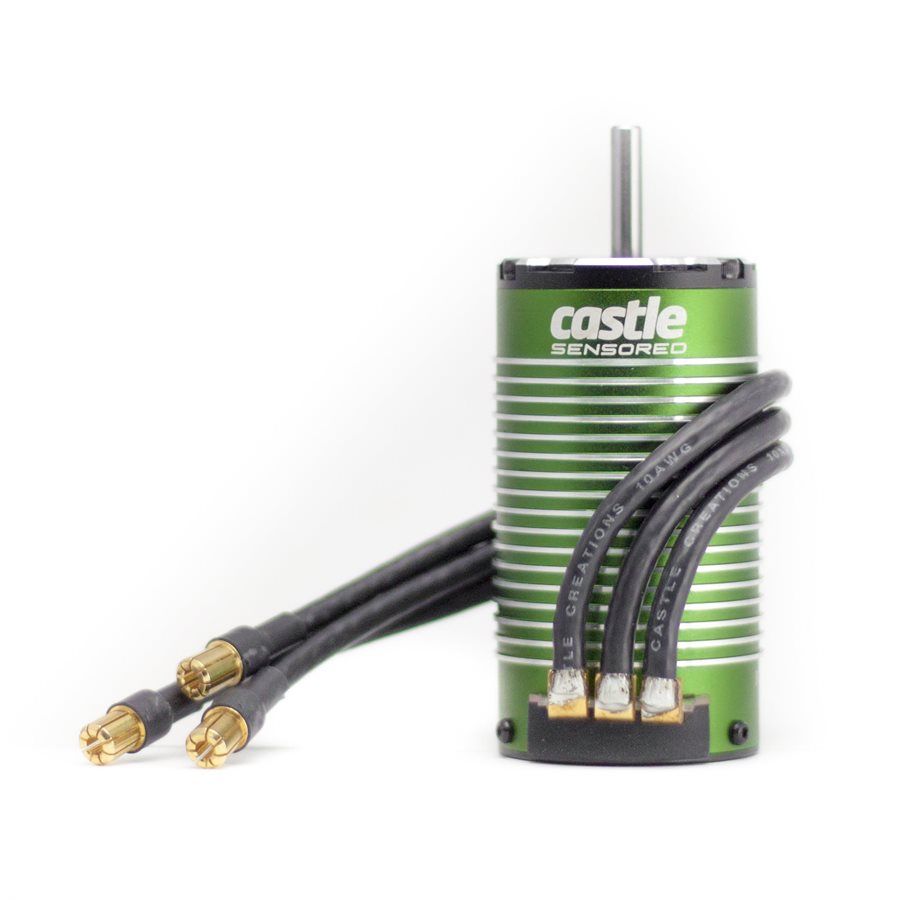

Castle 4-Pole Sensored Brushless Motor 1515-2200KV
Castle 4-Pole Sensored Brushless Motor 1515-2200KV
CAS060-0063-00
Regular price
$248.99 CAD
Regular price
Sale price
$248.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Minimum Input Voltage: 2S
- Maximum Input Voltage: 6S
- Sensored Capable: Yes
- Recon G6 Certified Motor: No
- ROAR Certified Motor: No
| Technical Specifications | |
|---|---|
| Input Voltage Range: | 2S-6S LiPo |
| Kv: | 2200 |
| Max. RPM: | 60000 |
| Size: |
Length: 75.4mm Diameter: 40mm (41.4mm with fins) |
| Weight (w/wires): | 429g / 15.1oz |
| Shaft Size: |
Length: 20mm Diameter: 5mm |
| Mounting Hole Specifications: | M3 and M4 @ 25mm |
| Cooling Fan: | Optional, coming soon! |
| Connectors: | 6.5mm male Castle Bullet Connectors, includes 210mm length sensor wire. |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) |
| Application Guidelines: | Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs. Not recommended for use in high speed 1/8th and larger applications (IE Arrma Infraction and Limitless, Traxxas XO-1) |
| Recommended ESC(s): | Mamba Monster X, Mamba X |
| Max. Recommended Vehicle Weight: | See application guidelines |
| Tech Notes: |
Running modes: SMARTSENSE, Sensored, Sensorless with Castle sensored capable ESCs. Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. |
