Castle Creations

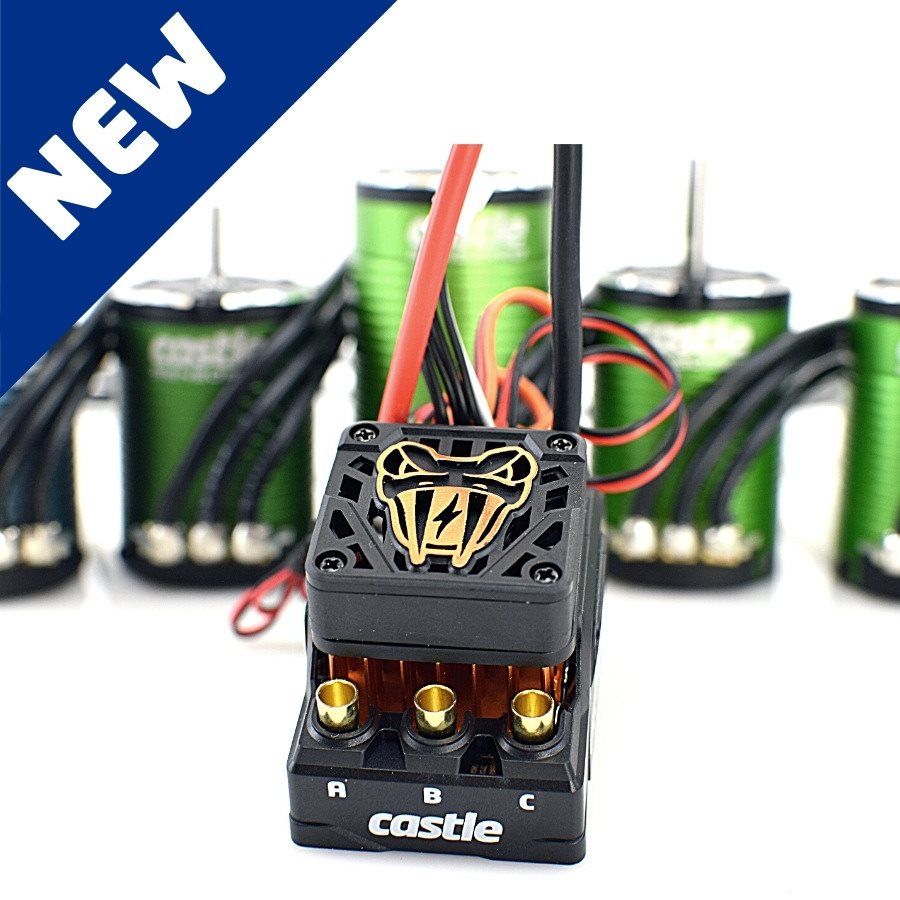

Castle Copperhead 10 Sensored ESC SCT w/ 1412-3200 Sensored
Castle Copperhead 10 Sensored ESC SCT w/ 1412-3200 Sensored
CAS010-0166-09
Regular price
$312.99 CAD
Regular price
Sale price
$312.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SCT COMBO | APPLICATION | MAX VEHICLE WEIGHT |
| 1412-3200Kv | 2s-4s on 2WD/4WD SC Trucks |
Vehicles weighing up to 6.5 lbs. ready-to-run |
COPPERHEAD 10 1412-3200KV COMBO COMES WITH:
- Copperhead 10 LIMITED EDITION ESC with Direct Connect Sensor Wire
- 1412-3200KV Sensored Motor
- Copperhead Limited Edition decals and Audible Alert Reference Chart
- Coupon for free Castle Link USB
- Copperhead Quick Start Guide
- Sensor port dust cover
| ESC Specs | |
|---|---|
| Application Guidelines: | 1/10 scale vehicles |
| Input Voltage Range: | 2s-4s (16.8V Max) |
| Running Modes: | SMARTSENSE, Sensored Only and Brushed Motor Operation |
| Brake: | Proportional |
| Reversible: | Yes, but may be disabled for racing. |
| On/Off Switch: | Yes, waterproof |
| Cooling Fan: | Yes, factory equipped (30mm), fully removable and includes dual use fan guard (See Operating Use Statements) |
| Size: | 2.19" x 1.39" x 1.33" |
| Weight (with wires): | 70.9 g / 2.50 oz. |
| Motor Connectors: | 4.0mm female bullets for motor connection |
| Items Needed for Operation: | Battery Connector required, Castle 4.0mm Polarized Connectors, Traxxas Power Connectors, or Deans Ultra Plugs are recommended. |
| Operating environment: | Waterproof design for all weather conditions. Although COPPERHEAD 10 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. **The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software, or the Castle Link App and a B-LINK Bluetooth Adapter (sold separately). |
| Telemetry Link Capable: | Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX, T7PX and T7PXR Transmitters. |
| Motor Specs | |
| Input Voltage Range: | 2s-4s |
| Kv: | 3200 |
| Max. RPM: | 100000 |
| Motor Size: | Length: 49.5mm Diameter: 36mm |
| Shaft Size: | Length: 15mm Diameter: 1/8" (3.17mm) |
| Weight (w/wires): | 197 g / 6.9oz |
| Mounting Hole Specifications: | M3 @ 25mm |
| Cooling Fan: | Optional - Coming Soon |
| Connectors: | 4mm male Castle Bullet Connectors |
| Items Needed for Operation: | Compatible Electronic Speed Control (ESC) |
| Application Guidelines: | 2s-4s on 2WD/4WD SC Trucks |
| Max. Recommended Vehicle Weight: | Vehicles weighing up to 6.5 lbs. ready-to-run. |
| Tech Notes: | Running modes: Sensorless and Sensored Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. |
