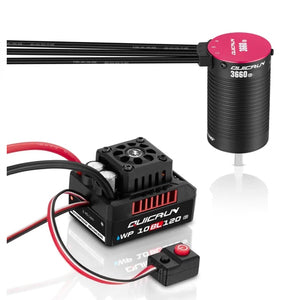

COMBO QUICRUN 10BL120 G2+3660 SL G2; 3700KV

ESC Specifications:

• Cont./Peak Current: 120A/760A
• Motor Type: Sensorless/Sensored Brushless Motor(only in sensorless mode)
• Applications: 1/10th Short course truck. Monster truck
• Motor Limit: With 3S LiPo = KV<4000 3660 size motor, With 4S LiPo = KV<2600 4268 size motor
• LiPo Cells: 2-4S LiPo
• BEC Output: 6V/7.4V adjustable, continuous current 5A (Switch-mode)
• Cooling Fan: Powered by built-in BEC
• Size/Weight: 52.8(L) x 39.8(W) x 38.2(H)mm/119g(Included wires&connectors)
• Programming Port: Independent programming port

Motor Specifications:

• KV: 3700KV
• LiPos: 2-3S
• No-load Current(A): 6.5A
• Diameter/Length(mm): O=36mm(1.42in), L=60mm(2.36in)
• Shaft Diameter/Length(mm): O=5mm(0.20in), L=18.5mm(0.73in)
• Bearing Size(mm): Front=D16*D5*T5, Rear=D13*D5*T4
• Poles: 4
• Weight(g): 278g
• Applications: 1/10 Truck, Monster truck
