Injora
Injora INJS2065 PRO 9KG HV Servo w/Aluminum Mount & Horn for Traxxas® TRX-4M™
Injora INJS2065 PRO 9KG HV Servo w/Aluminum Mount & Horn for Traxxas® TRX-4M™
Regular price
$68.98 CAD
Regular price
Sale price
$68.98 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

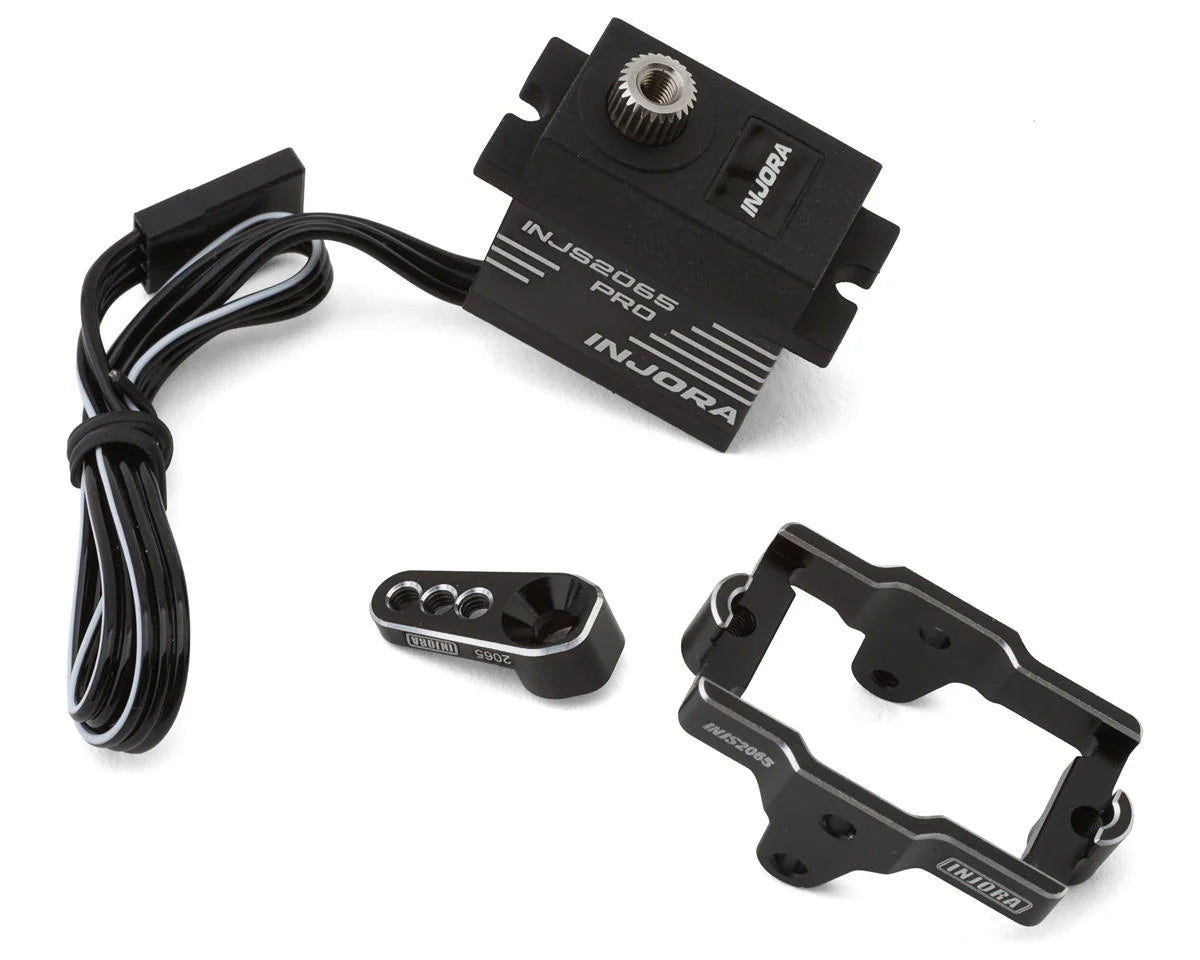

Includes:
- (1) INJORA INJS2065 PRO 9kg Waterproof Metal Gear Digital Micro Servo
- (1) Aluminum Servo Mount for Traxxas TRX-4M
- (1) Aluminum Servo Horn
Specifications:
| Application | Traxxas TRX-4M RC Crawler |
|---|---|
| Servo Part Number | INJS2065 PRO |
| Input Voltage | 4.8–8.4V |
| Speed: | |
| @7.4V: | 0.069 sec/60° |
| @8.4V: | 0.061 sec/60° |
| Torque: | |
| @7.4V: | 110.1oz.in (7.93kg-cm) |
| @8.4V: | 125.0oz.in (9.00kg-cm) |
| Motor | Core Motor |
| Control Signal | PWM |
| Operating Angle | 180° (500–2500?s) |
| Output Spline | ?5.9 25T |
| Gear Material | Stainless Steel |
| Housing Material | Aluminum Alloy, Nylon |
| Servo Mount Material | Aluminum |
| Servo Horn Material | Aluminum |
| Waterproof | Yes |
| Connector | JR |
| Wire Length | 9.84in (250mm), 26AWG |
| Servo Dimensions (LxWxH) | 0.91×0.51×1.02in (23×13×25.9mm) |
