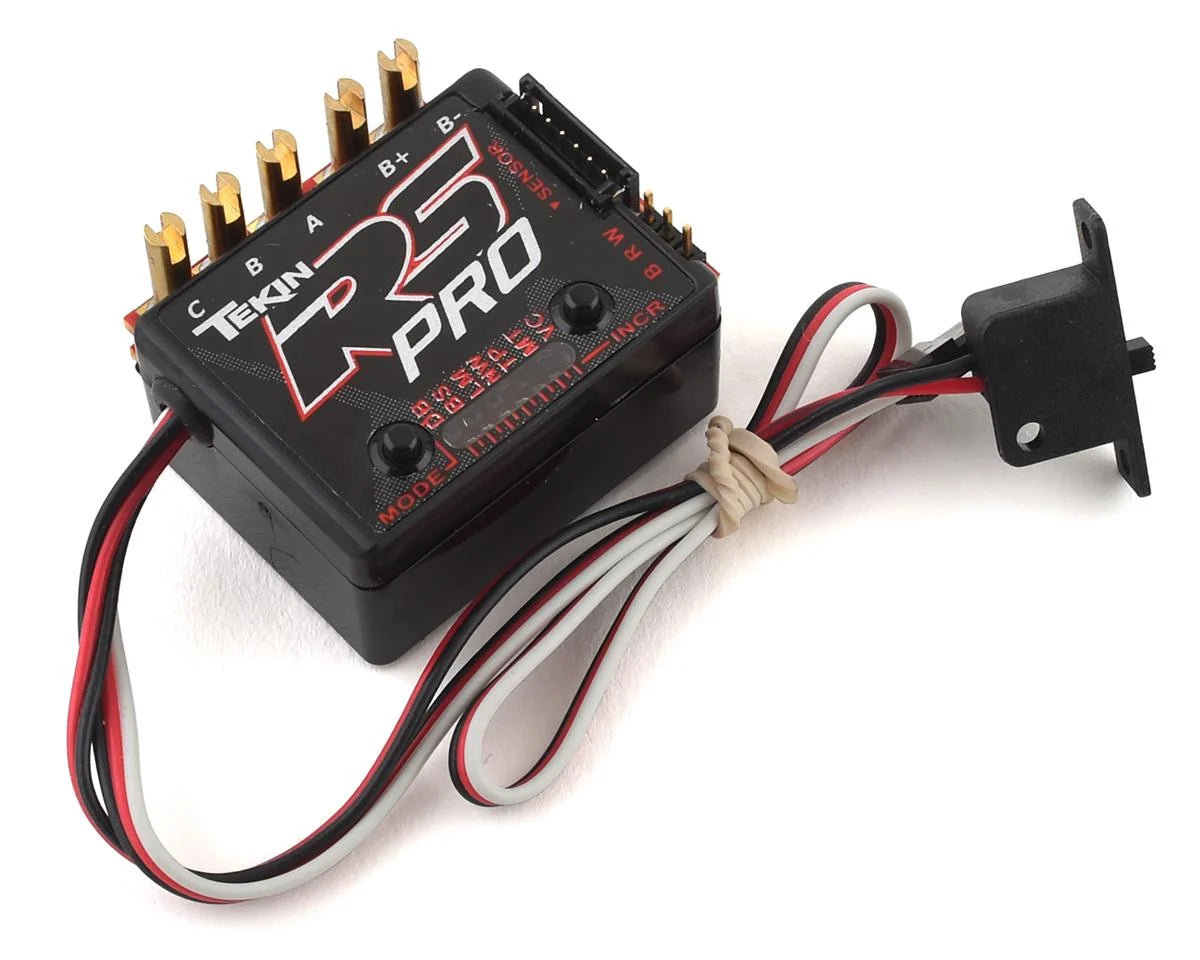

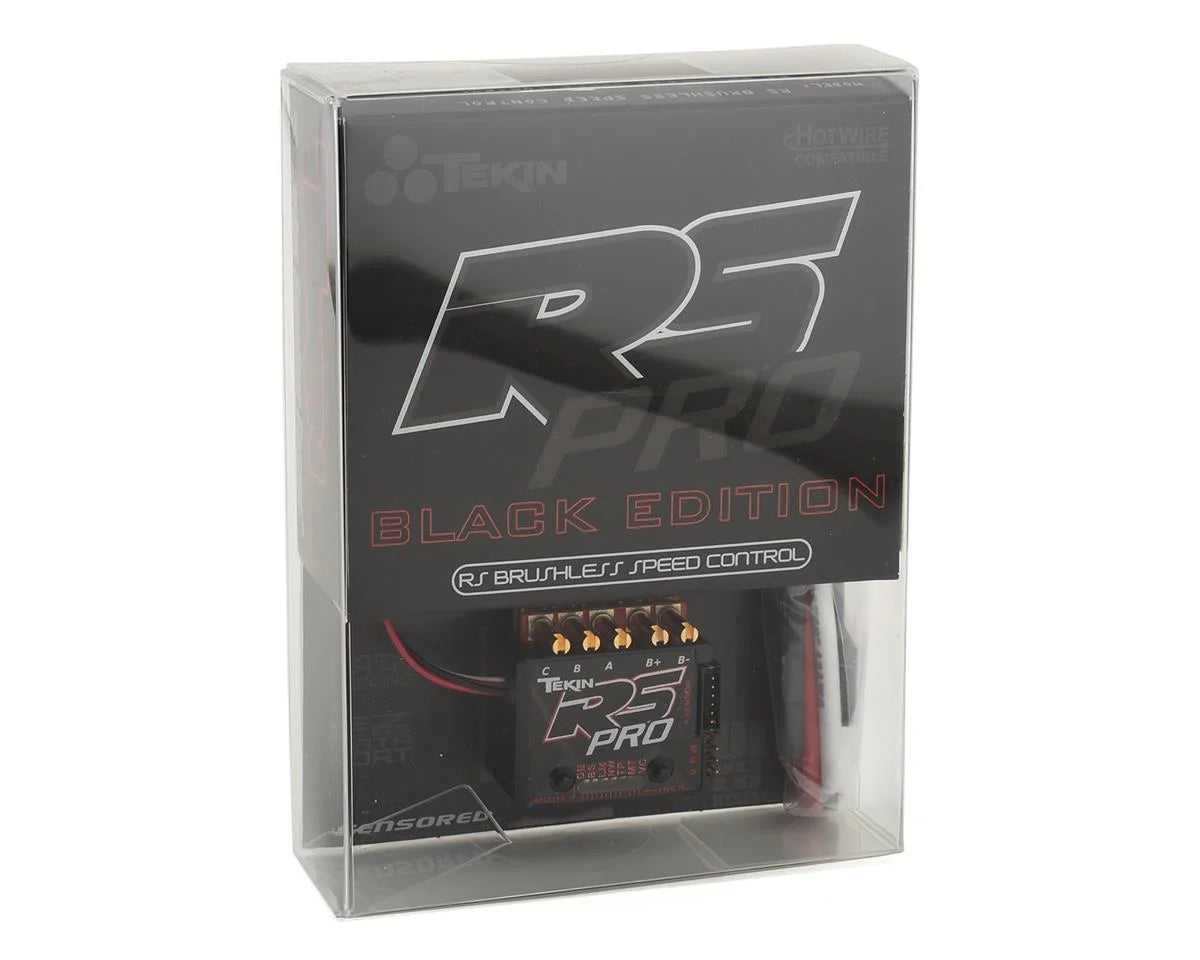

Tekin RS Pro Black Edition BL Sensored/Sensorless ESC
Tekin RS Pro Black Edition BL Sensored/Sensorless ESC
TEKTT1160
Regular price
$321.99 CAD
Regular price
Sale price
$321.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features:
Controls: Forward/Brake/Reverse
Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*; RS PRO 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode:
1S - 2.5T 2-pole 36mm Can
2S Drag Racing - 2.5T 2-pole 36mm Can
2S Track Racing - 8.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 1S - 6 Turn 36mm Can; 2S - 6 Turn 36mm Can
Max Current: 560amps per phase**
ON Resistance: .000096ohm**
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
Weight: 1.23oz / 35g
- ULR: Ultra Low Resistance Design
- Double Stack FET Boards
- Specifically Designed for Spec & Stock Racing
- RS PRO 1-S equipped with built-in Booster
- 3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>
- QuickTune™ One Touch Programming
- Adjustable Torque Control *
- Adjustable Throttle and Brake Frequencies *
- High Voltage Programmable BEC *
- HotWire™ Programming Port *
- Data Logging Capability *
- On-Board Sensor Checker
- On-Board Temperature Indicator
- ESC Self Diagnostics with Error Codes
- Fully Proportional Forward/Brake/Reverse
- Brushless and Brushed Motor Drive
- Sensored or Sensorless Operation
- LiPo Safe with Custom Voltage Cutoffs
- Sensor Plug for Precise Commutation
- Lightweight Chassis Design
- HDAC: High Density Copper PCB's
- Ultra-smooth and Precise Throttle and Braking Control
Controls: Forward/Brake/Reverse
Input Voltage: RS PRO: 1S-3S LiPo / 4-9S NiMH-NiCD*; RS PRO 1-S: 1S LiPo ONLY / 4S NiMH-NiCD
Motor Limit Brushless Mode:
1S - 2.5T 2-pole 36mm Can
2S Drag Racing - 2.5T 2-pole 36mm Can
2S Track Racing - 8.5T 2-pole 36mm Can
Motor Limit Brushed Mode: 1S - 6 Turn 36mm Can; 2S - 6 Turn 36mm Can
Max Current: 560amps per phase**
ON Resistance: .000096ohm**
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .68" / 24.5 x 33 x 17.25mm
Weight: 1.23oz / 35g
