Tekin

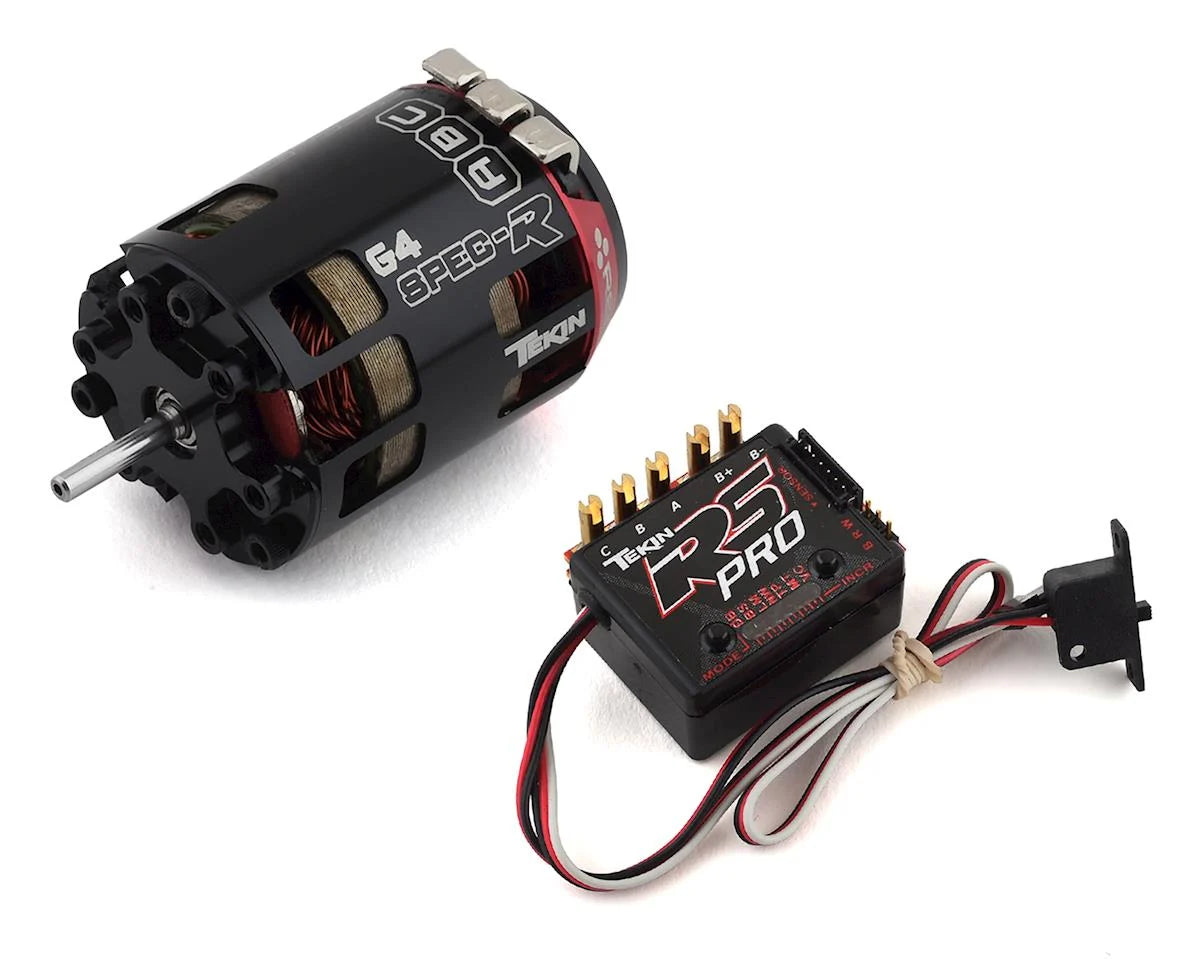

Tekin RS Pro Black Sensored Brushless ESC/Gen4 Spec R Motor Combo (17.5T)

Tekin RS Pro Black Sensored Brushless ESC/Gen4 Spec R Motor Combo (17.5T)

TEKTT2808

Regular price $447.99 CAD
Regular price Sale price $447.99 CAD
Sale Sold out
Shipping calculated at checkout.
Features:
  • Motor:
    • 60 Degrees Adjustable Timing Advance
    • SPEC Racing Specific Design
    • CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
    • Neodymium Sintered Magnet
    • Precision Engineered for Maximum Energy Conversion
    • High Purity Copper Windings Maximize Conductivity
    • Low Resistance, High Power Solder Tabs
    • Sensored System Ready
    • Anodized Endbell Plates Maximize Corrosion and Wear Resistance
    • High RPM Precision Bearings
    • Oversized Front Bearing
    • Solder-less Sensor PCB Replacement
    • Legal in Major Governing Race Bodies
    • ROAR Approved
  • ESC:
    • ULR: Ultra Low Resistance Design
    • Specifically Designed for Spec & Stock Racing
    • QuickTune™ One Touch Programming
    • Adjustable Throttle and Brake Frequencies *
    • High Voltage Programmable BEC *
    • HotWire™ Programming Port *
    • Data Logging Capability *
    • Sensor Checker
    • On-Board Temperature Indicator
    • ESC Self Diagnostics with Error Codes
    • Fully Proportional Forward/Brake/Reverse
    • Brushless and Brushed Motor Drive
    • Sensored or Sensorless Operation
    • LiPo Safe with Custom Voltage Cutoffs
    • Sensor Plug for Precise Commutation
    • Lightweight Chassis Design
    • HDAC: High Density Copper PCB's
    • Ultra-smooth and Precise Throttle and Braking Control

*NOTE: requires HotWire™ sold separately.


Specifications:
  • Motor:
    • Input Voltage: 1-2S LiPo
    • Weight: 5.1oz / 145g
    • Shaft Size: 3.18mm / 1/8”
    • Motor Length: 50.25mm / 1.978”
    • Motor Diameter: 35.85mm / 1.40”
    • Max Operating Temperature: 180F / 82C
    • Bearing Dimensions: Front 4x13x5mm / Rear 1/8x38/5/32”
    • Rotor Size: 17.5T: 12.5mm BLUE
    • Rebuildable: Yes
  • ESC:
    • Controls: Forward/Brake/Reverse
    • Input Voltage RS Pro : 1-3S LiPo / 4-9S NiMH-NiCD
    • Motor Limit Brushless Mode 2S: 36mm Can - 2-Pole
    • Motor Limit Brushless Mode 3S: 36mm Can - 2-Pole
    • Motor Limit Brushed 2S: 36mm Can - 540 & 550
    • Motor Limit Brushed 3S: 36mm Can - 540 & 550
    • Amperage: 480Amps per phase*
    • ON Resistance: .000096ohm*
    • BEC: 6.0 / 7.4V @ 5.5amps
    • Weight: 1.23oz / 35g
    • Dimensions: 1.0 x 1.3 x .68in / 24.5 x 33 x 17.25mm
